Product code: QDT-1920
20kwh 200V Stacked High Voltage Power Supply
$4,683.00
| Model | Energy | Battery Type | Capacity |
| QDT-1920 | 19.2KW | LiFePO4 | 100AH |
| Rated Voltage | Max Charge Current | Working Voltage Range | Max Discharge Current |
| 192V | 100A | 150~219V | 100A |
| Standard Charge Current | DOD | Standard Discharge Current | Max Parallel Quantity |
| 50A | 100% | 50A | 1 |
Description
Characteristics
No Reviews
Description

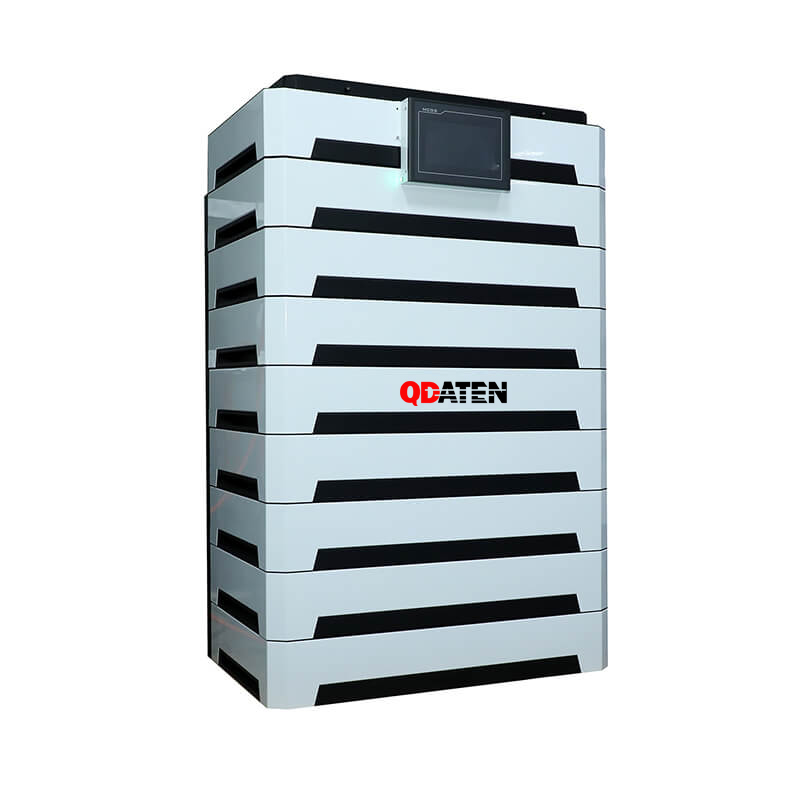

20kwh 200V Stacked High Voltage Power Supply
| Model | Energy | Battery Type | Capacity |
| QDT-1920 | 19.2KW | LiFePO4 | 100AH |
| Rated Voltage | Max Charge Current | Working Voltage Range | Max Discharge Current |
| 192V | 100A | 150~219V | 100A |
| Standard Charge Current | DOD | Standard Discharge Current | Max Parallel Quantity |
| 50A | 100% | 50A | 1 |
| Designed Life-span[1] | Operation Humidity | Operating Temperature[2] | Nominal Operation Altitude |
| 4000 cycles | 5~95% | Charge:0~60℃ Discharge:-10~60℃ | ＜3000m |
| IP Rating | Communication | Installation Method | Certification |
| IP22 | RS485 | Stacking | CE |
| Net Weight | Dimension(L*W*H) | [1] Test conditions:100%DOD,0.2C charge&discharge at +25 ℃ | |
| 200kg | 710*450*700 mm | [2] -10 ℃ to 10 ℃ will be derating | |
Characteristics
| Battery Type | LifePo4 Stackedn Power Station |
|---|---|
| Voltage | 192V |
| Capacity | 100Ah |
