Product code: QDT-7A

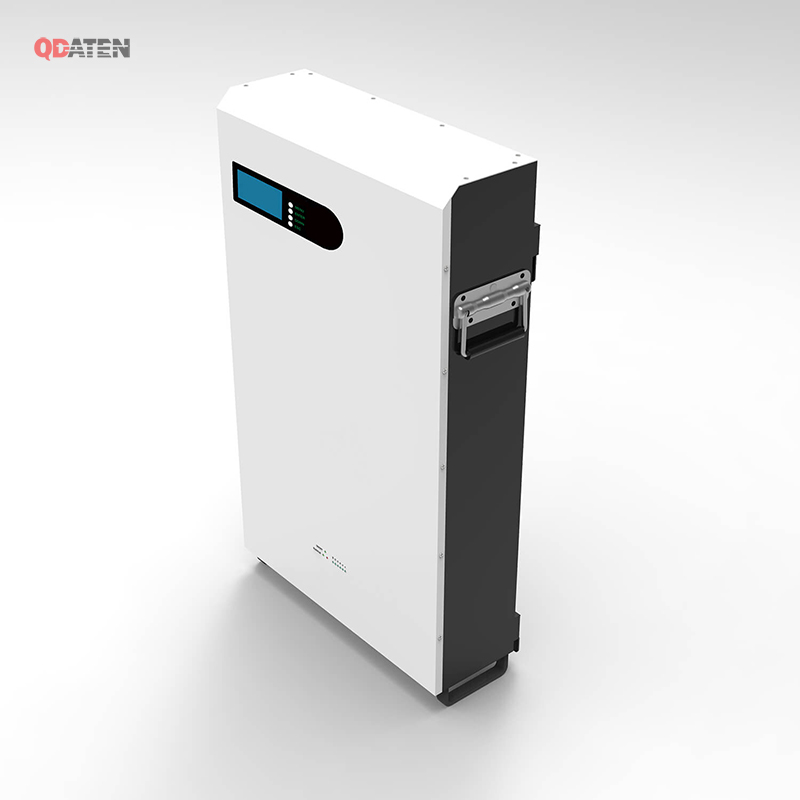

QDT-7A 51.2V 135Ah LifePo4 All-in-One Home Energy Storage System
$1,860.00
| Model | Energy | Battery Type | Capacity |
| AJF7A | 6912Wh | LiFePO4 | 135AH |
| Rated Voltage | Max Charge Current | Working Voltage Range | Max Discharge Current |
| 51.2V | 100A | 40~58.4V | 100A |
| Standard Charge Current | DOD | Standard Discharge Current | Max Parallel Quantity |
| 50A | 100% | 100A | 15 |
| Designed Life-span[1] | Operation Humidity | Operating Temperature[2] | Nominal Operation Altitude |
| 6000 cycles | 5~95% | Charge:0~60℃ Discharge:-10~60℃ | ＜3000m |
Description
Characteristics
No Reviews
Description
QDT-7A 51.2V 135Ah LifePo4 All-in-One Home Energy Storage System
Technical Parameters
| Model | Energy | Battery Type | Capacity |
| QDT-7A | 6912Wh | LiFePO4 | 135AH |
| Rated Voltage | Max Charge Current | Working Voltage Range | Max Discharge Current |
| 51.2V | 100A | 40~58.4V | 100A |
| Standard Charge Current | DOD | Standard Discharge Current | Max Parallel Quantity |
| 50A | 100% | 100A | 15 |
| Designed Life-span[1] | Operation Humidity | Operating Temperature[2] | Nominal Operation Altitude |
| 6000 cycles | 5~95% | Charge:0~60℃ Discharge:-10~60℃ | ＜3000m |
| IP Rating | Communication | Installation Method | Certification |
| IP65 | RS485/CAN | Wall-Mount | MSDS UN38.3 |
| Net Weight | Dimension(L*W*H) | [1] Test conditions:100%DOD,0.2C charge&discharge at +25 ℃ | |
| 63.3kg | 670*400*145mm | [2] -10 ℃ to 10 ℃ will be derating | |
Characteristics
| Battery Type | LifePo4 ESS |
|---|---|
| Voltage | 51.2V |
| Capacity | 135Ah |
